SPEEDX HDMI Range Extender – Single LAN CAT6 Extension up to 60M for Full HD Transmission

SPEEDX HDMI Range Extender 60M – Single LAN Ethernet HDMI Extender Over CAT5/6 Cable

The SPEEDX HDMI Range Extender 60M is a high-performance device designed to transmit HDMI signals over long distances using a single CAT5e/6 Ethernet cable. Ideal for home theaters, office presentations, CCTV setups, multimedia classrooms, and digital signage, this extender ensures stable, full-HD signal transmission up to 60 meters.

In addition to standard point-to-point use, it also supports LAN transmission over routers or network switches, allowing HDMI signals to be broadcast from one sender to multiple receivers—similar to an HDMI splitter over IP.

Key Features

• Long-Distance Transmission
  Extends HDMI signals up to 60 meters over CAT5e or CAT6 cable.

• Networked HDMI Distribution
  Supports HDMI transmission over a local network via a router, hub, or switch.
  Enables one-to-many broadcast mode.

• High Compatibility
  Follows IEEE-568B standard and supports HDCP.

• Full HD 1080p Support
  Compatible with:

  • 480i/480p @ 60Hz

  • 576i/576p @ 50Hz

  • 720p @ 50/60Hz

  • 1080i @ 50/60Hz

  • 1080p @ 24/50/60Hz

• Stable, Lossless Signal Quality
  Maintains clear, stable video and audio across long distances.

• Plug-and-Play
  Simple installation with no software or driver requirements.

Specifications

• Transmission Distance: Up to 60m (CAT5e/6)

• Resolution Support: Up to Full HD 1080p

• Network Compatibility: Supports TCP/IP

• HDCP: Compliant

• Input/Output: HDMI, RJ45 (Ethernet)

• Power Supply: DC 5V/1A (included)

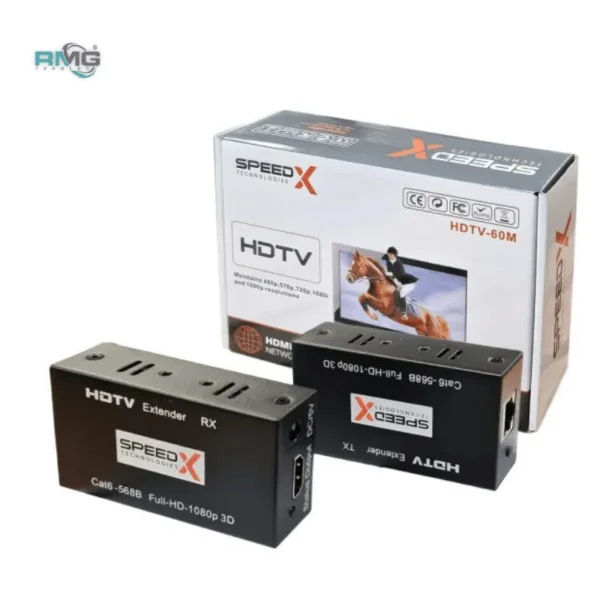

Package Includes

• 1 × Transmitter (Sender)

• 1 × Receiver

• 2 × DC 5V Power Adapters

• 1 × User Manual
