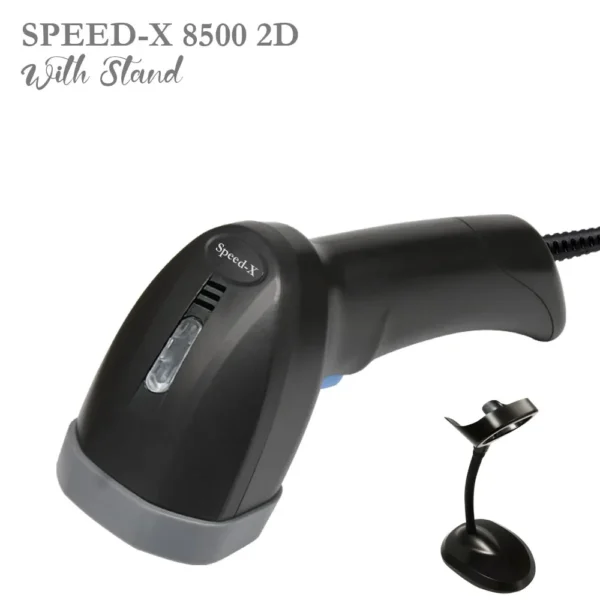

Speed-X 8500 2D CMOS USB Barcode Scanner – USB Plug & Play

Overview of Speed-X 8500 USB Barcode Scanner

The Speed-X 8500 2D CMOS USB Barcode Scanner is a cutting-edge device designed for efficiency and performance. With advanced imaging technology, this scanner swiftly captures both 1D and 2D barcodes, making it suitable for various applications.

CMI-8010

2D Wire CMOS Handheld Barcode Scanner

Technical Parameters

Electrical Characteristics

InterfaceUSB HID KEYBOARD/USB VCP

Voltage requirement5VDC±10%

Current consumptionMax:120mA

Optical Characteristics

Photo sensorCMOS array sensor

SENSOR RESOLUTION648X488 pixels

Light sourceWhite LED*1

Aim light sourceRed Bar led

Performance Characteristics

Decode anglePitch angle:±55°

Skew angle:±55°

Tilt angle:±180°

Min resolution1D:4mil(0.127)

Min.PCS value〉30%UPC/EAN 13（13mil）

Languagemultiple languages

Field of View20°(H),21°(V)

Identification1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI

2D：QR, PDF417，Data Matrix

Physical Characteristics

Dimensions67 mm H x97 mm W x165 mm D

Weight122.8g

Environmental Characteristics

Temp-20°to 60°C / -4°to 140°F((operation) ) -40°-to 80°C /-40°to 176°F(storage)

Humidity5 – 95% (operation) ) 5 – 95% (storage)

Shock drop test1.5m drop onto concrete surface

Ambient Light:fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Regulatory

Electrical SafetyUL 60950，EN/IEC 60950

EMI/RFIFCC Part 15 Class B,EN 55024/CISPR 22

EnvironmentalRoHS

Depth of field

Symbology Resolution(mm) Depth of field

Code39 5.0 mil 40mm–90mm

100% UPCA 15.0mil 40mm—250mm

Code 39 15.0mil 40mm–250mm

Code 93 10.0mil 40mm–210mm

Easy Plug-and-Play Functionality

Featuring a USB plug, the Speed-X 8500 ensures a hassle-free setup process. Simply connect it to your computer, and you’re good to go! This user-friendly functionality is perfect for professionals seeking seamless integration into their existing systems.

Durability and Reliability

Built with robust materials, the Speed-X 8500 is not only durable but also designed for frequent use. Its reliable performance guarantees accurate scanning for retailers, warehouses, and more, enhancing operational efficiency at every turn.
