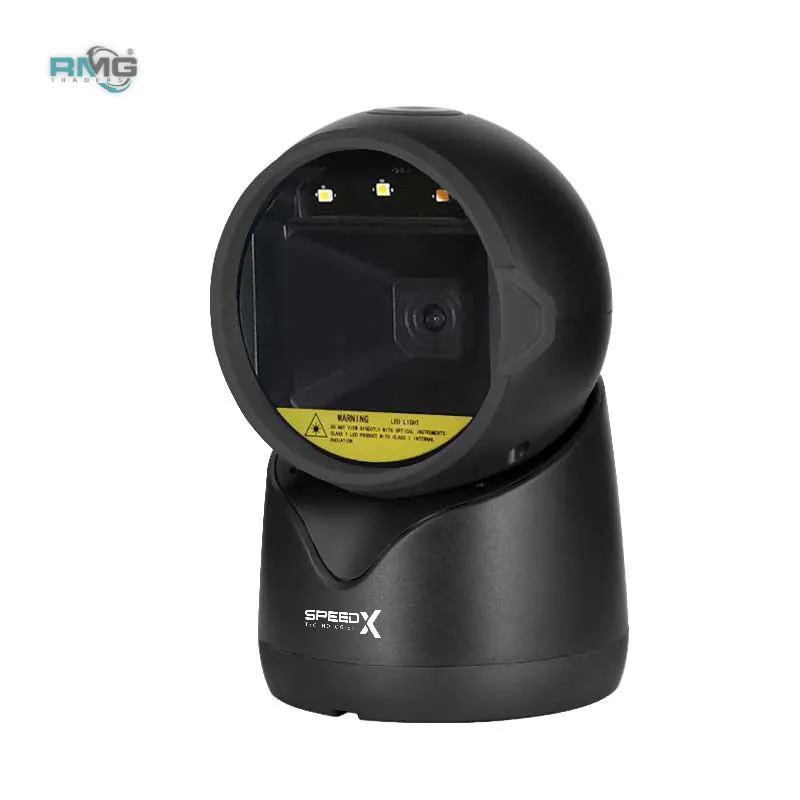

⭐ Speed-X SP-9600 2D Desktop Barcode Scanner – Automatic QR Code & Barcode Reader for POS, Retail & Business

The Speed-X SP-9600 2D Desktop Barcode Scanner is a professional automatic barcode and QR code reader designed for POS systems, retail stores, supermarkets, pharmacies, warehouses, offices, and businesses. Equipped with a CMOS image sensor, white LED illumination, and 60 FPS decoding speed, it provides fast and reliable scanning performance.

The SP-9600 supports a wide range of 1D and 2D barcodes, including UPC, EAN, Code 39, Code 128, PDF417, QR Code, Data Matrix, Aztec, HanXin, and more. Its desktop design allows convenient hands-free scanning, making it ideal for busy checkout counters and POS environments.

With USB HID Keyboard and USB VCP interfaces, the scanner offers easy connectivity with compatible computers and POS systems. The compact desktop body, LED indicator, beeper, wide scanning angles, and durable 1.5-meter drop resistance make it suitable for everyday commercial use.

Key Features

2D Barcode & QR Code Scanning: Supports both 1D and 2D barcode formats, including QR Code, Data Matrix, PDF417, Aztec, and HanXin.

Automatic Desktop Scanning: Designed for convenient hands-free barcode scanning at POS counters and checkout stations.

Fast 60 FPS Decoding: Provides quick barcode recognition for efficient retail and business operations.

CMOS Image Sensor: Features a 640 × 480 pixel CMOS array sensor for reliable image-based scanning.

Wide Scanning Angles: Supports Pitch ±65°, Skew ±65°, and Tilt ±360° for flexible barcode positioning.

USB Connectivity: Supports USB HID Keyboard and USB VCP interfaces for convenient connection with compatible systems.

Multiple Language Support: Supports multiple languages and custom data output configurations.

Wide Barcode Compatibility: Decodes a broad selection of retail, logistics, payment, and business barcode formats.

Durable Desktop Design: Built to withstand drops of up to 1.5 meters onto concrete surfaces.

LED & Beeper Indicators: Provides visual and audible feedback during scanning.

Perfect For

✓ POS Systems
✓ Retail Stores
✓ Supermarkets
✓ Grocery Stores
✓ Pharmacies
✓ Warehouses
✓ Inventory Management
✓ Billing & Checkout Counters
✓ E-commerce Businesses
✓ Offices & Commercial Use
✓ Restaurants & Food Businesses
✓ Small & Large Businesses

Specifications

Product Type: 2D Desktop Barcode Scanner
Model: Speed-X SP-9600
Sensor: CMOS Array Sensor
Sensor Resolution: 640 × 480 Pixels
Light Source: White LED
Decoding Speed: 60 FPS
Interface: USB HID Keyboard / USB VCP
Input Voltage: DC 5V ±5%
Current: Max. 335mA
Minimum Resolution: 4mil
Scanning Angle: Pitch ±65° / Skew ±65° / Tilt ±360°
Field of View: 36° Horizontal / 27° Vertical
Languages: Multiple Languages
Data Editing: Custom Data Output Supported
Indicator: Beeper & LED
Dimensions: 94 × 100 × 152 mm (L × W × H)
Weight: Approx. 260g
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 5%–95% RH, non-condensing
Drop Resistance: 1.5m drop onto concrete

Supported 1D Barcodes

Codabar, Code 39, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post, GS1 Composite Codes, Code 32, Korea Post and more.

Supported 2D Barcodes

PDF417, QR Code, Data Matrix, Aztec Code, HanXin Code, MaxiCode and Micro PDF417.

Decoding Depth of Field

Code 39 – 5mil: 10mm to 90mm
Code 39 – 13mil: 0mm to 175mm
UPC-A – 3.34mil: 10mm to 170mm
QR Code – 20mil: 0mm to 130mm
QR Code – 30mil: 0mm to 180mm
Payment QR – 3 × 3cm: 10mm to 320mm
Payment QR – 2.3 × 2.3cm: 0mm to 260mm

Package Includes

✓ 1 × Speed-X SP-9600 2D Desktop Barcode Scanner
✓ 1 × USB Connecting Cable
✓ User Documentation / Accessories as Applicable

Why Choose This Scanner?

✓ Fast 60 FPS barcode decoding
✓ Supports both 1D and 2D barcodes
✓ Automatic hands-free desktop scanning
✓ QR Code and payment QR scanning support
✓ USB HID Keyboard & USB VCP connectivity
✓ Wide scanning angles for convenient operation
✓ Compact and professional desktop design
✓ Suitable for POS, retail, inventory and business applications
✓ 1.5-meter drop resistance
✓ Supports custom data output

Speed-X SP-9600 — A Fast, Reliable 2D Desktop Barcode Scanner for Modern POS and Business Applications.
