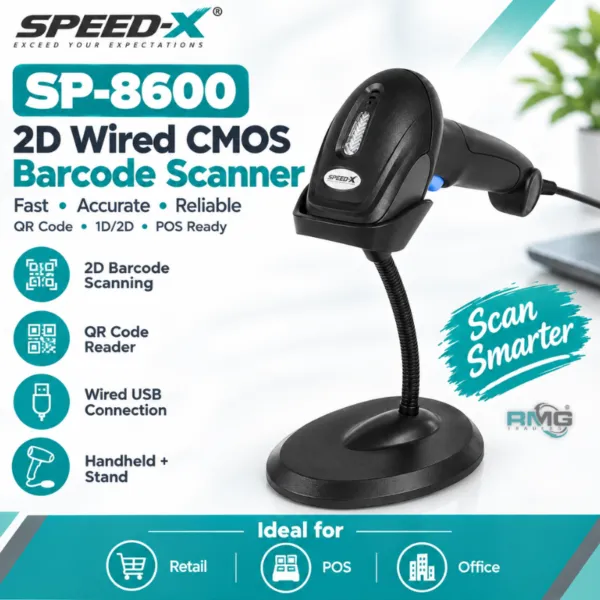

Speed-X SP-8600 2D Wired CMOS Handheld Barcode Scanner with Stand – QR Code Reader for POS, Retail & Business

Product Overview

The Speed-X SP-8600 2D Wired CMOS Handheld Barcode Scanner with Stand is a professional barcode and QR code reader designed for POS systems, retail stores, supermarkets, warehouses, inventory management, pharmacies, and business applications. Featuring a CMOS image sensor with a 640 × 480 pixel resolution, the scanner provides reliable scanning performance for both 1D and 2D barcodes.

The SP-8600 supports USB HID Keyboard and USB COM interfaces, allowing convenient connection with compatible computers, POS systems, and other USB-enabled devices. Its handheld design provides flexible scanning, while the included stand allows convenient hands-free operation when required.

With support for popular barcode formats including Code 128, EAN-13, UPC-A, Code 39, QR Code, Data Matrix, PDF417, and Micro QR, the scanner is suitable for a wide range of commercial and everyday scanning applications.

Key Features

1D & 2D Barcode Scanning: Supports a wide range of traditional 1D barcodes as well as QR Code, Data Matrix, PDF417, and Micro QR.

CMOS Image Sensor: Features a 640 × 480 pixel CMOS array sensor for reliable image-based barcode scanning.

Handheld & Hands-Free Use: Ergonomic handheld design with an included stand for convenient desktop and hands-free scanning.

USB Connectivity: Supports USB HID Keyboard and USB COM interfaces for flexible connection with compatible POS and computer systems.

White LED Illumination: Built-in white LED light source assists with barcode image capture.

Red Aim Light: Red bar LED provides a visible aiming guide for accurate scanning.

Wide Field of View: Offers approximately 66° horizontal and 50° vertical field of view for convenient barcode positioning.

Multiple Language Support: Supports multiple languages and custom data output configurations.

Durable Construction: Designed to withstand drops of up to 1.5 meters onto concrete surfaces.

Screen QR Scanning: Supports QR code scanning from screens, making it useful for digital payment codes and electronic displays.

Perfect For

✓ POS Systems
✓ Retail Stores
✓ Supermarkets
✓ Grocery Stores
✓ Pharmacies
✓ Warehouses
✓ Inventory Management
✓ Billing Counters
✓ E-commerce Businesses
✓ Offices
✓ Digital Payment QR Codes
✓ Product & Barcode Scanning

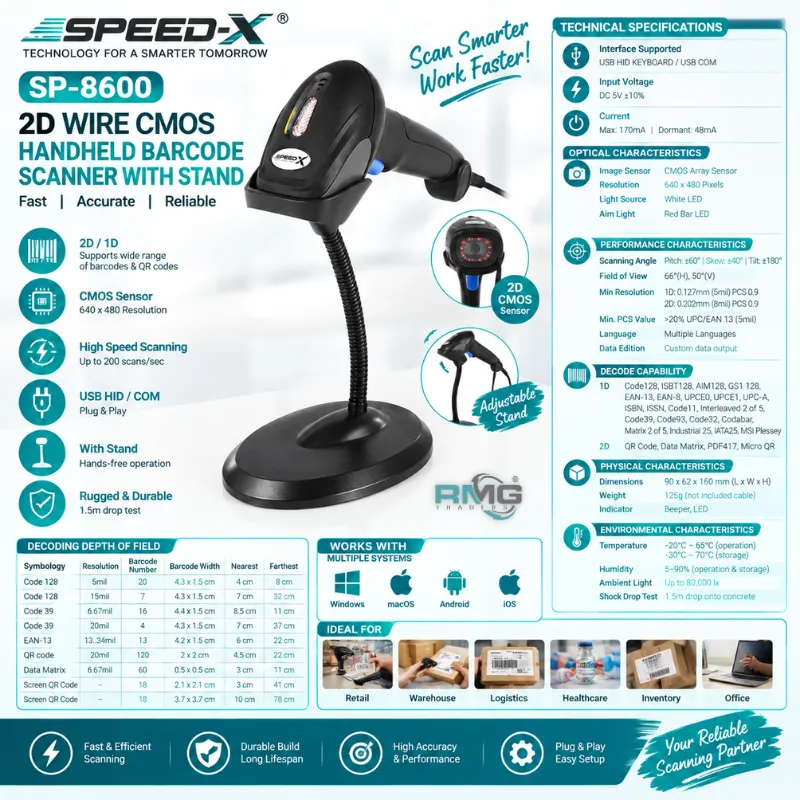

Specifications

Brand: Speed-X
Model: SP-8600
Product Type: 2D Wired Handheld Barcode Scanner
Sensor: CMOS Array Sensor
Sensor Resolution: 640 × 480 Pixels
Light Source: White LED
Aim Light: Red Bar LED
Interface: USB HID Keyboard / USB COM
Input Voltage: DC 5V ±10%
Maximum Current: 170mA
Dormant Current: 48mA
Scanning Angle: Pitch ±60° / Skew ±40° / Tilt ±180°
Field of View: 66° Horizontal / 50° Vertical
1D Minimum Resolution: 0.127mm / 5mil
2D Minimum Resolution: 0.202mm / 8mil
Languages: Multiple Languages
Data Editing: Custom Data Output Supported
Indicator: Beeper & LED
Dimensions: 90 × 62 × 160 mm (L × W × H)
Weight: Approx. 125g (excluding cable)
Operating Temperature: -20°C to 65°C
Storage Temperature: -30°C to 70°C
Humidity: 5%–90%
Ambient Light: Up to 80,000 lux
Drop Resistance: 1.5m drop onto concrete

Supported 1D Barcodes

Code 128, ISBT 128, AIM 128, GS1-128, EAN-13, EAN-8, UPC-E0, UPC-E1, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 2 of 5, IATA 2 of 5, MSI Plessey and more.

Supported 2D Barcodes

✓ QR Code
✓ Data Matrix
✓ PDF417
✓ Micro QR

Decoding Depth of Field

Code 128 – 5mil: Approx. 4cm–8cm
Code 128 – 15mil: Approx. 7cm–32cm
Code 39 – 6.67mil: Approx. 8.5cm–11cm
Code 39 – 20mil: Approx. 7cm–37cm
EAN-13 – 13.34mil: Approx. 6cm–22cm
QR Code – 20mil: Approx. 4.5cm–22cm
Data Matrix – 6.67mil: Approx. 3cm–11cm
Screen QR Code – 2.1 × 2.1cm: Approx. 3cm–41cm
Screen QR Code – 3.7 × 3.7cm: Approx. 10cm–78cm

Scanning distance may vary depending on barcode size, resolution, printing quality, screen brightness, and environmental conditions.

Package Includes

✓ 1 × Speed-X SP-8600 2D Handheld Barcode Scanner
✓ 1 × Scanner Stand
✓ 1 × USB Connecting Cable

Why Choose This Scanner?

✓ Professional 1D & 2D barcode scanning
✓ Supports QR Code, Data Matrix and PDF417
✓ 640 × 480 CMOS image sensor
✓ USB HID Keyboard & USB COM connectivity
✓ Handheld and hands-free scanning with included stand
✓ Red bar LED aiming light
✓ Wide 66° × 50° field of view
✓ Supports QR codes displayed on screens
✓ Custom data output supported
✓ Durable 1.5m drop resistance
✓ Suitable for POS, retail, inventory and business applications

Speed-X SP-8600 — A Reliable 2D Wired Barcode Scanner with Handheld Flexibility and Convenient Hands-Free Operation.
