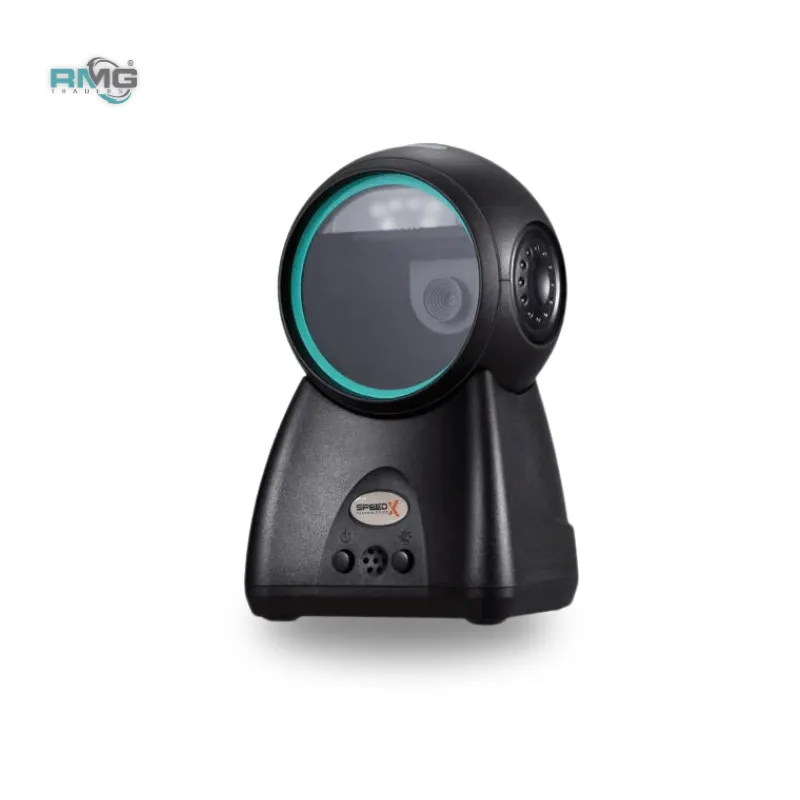

2D/1D CMOS Desktop Barcode Scanner – Omni-Directional LED Scanner with USB Interface, IP54 Protection & Mobile Screen Code Support (2025 Edition)

This Omni-Directional CMOS Desktop Barcode Scanner is designed for fast, accurate, and high-volume scanning in retail, warehouse, pharmacy, logistics, and office environments. Equipped with a 640×480 global exposure CMOS sensor and a 617nm red LED light source, it delivers quick and precise decoding of both 1D and 2D barcodes—including QR codes from mobile screens.

With an automatic induction trigger, the scanner enables hands-free scanning, making it ideal for checkout counters and continuous scanning tasks. Its rugged ABS + PC body, IP54 sealing, and 1.5m drop resistance ensure durability in demanding work environments.

Whether you’re reading printed labels or smartphone codes, this scanner offers exceptional compatibility and performance with plug-and-play USB connectivity.

Key Features:

• Global exposure CMOS sensor for fast and stable scanning

• High-resolution 640×480 capture for accurate barcode reading

• Omni-directional induction scanning for hands-free operation

• Supports all major 1D & 2D barcodes including QR, Data Matrix, PDF417

• Reads barcodes from mobile phone screens with high accuracy

• 617nm red LED light source for reliable performance in all lighting conditions

• Durable ABS + PC body with IP54 sealing

• Drop-resistant design tested up to 1.5 meters

• Multiple interface options: USB, USB-COM, RS-232 (optional)

• Ideal for retail, supermarkets, logistics, warehouses, offices, and pharmacy use

Specifications:

Sensor: CMOS (Global Exposure)
Pixels: 640 × 480
Light Source: 617nm Red LED
Scan Mode: Omni-directional | Automatic Induction Trigger
Minimum Resolution: 0.127mm (5mil) @ Code 39, PCS = 90%
Environment Temperature:

• Operating: 0°C – 50°C

• Storage: -20°C – +70°C
  Humidity: 5% – 95% non-condensing
  Ambient Light:

• Fluorescent: 0 – 8,600 Lux

• Sunlight: 0 – 100,000 Lux
  Input Voltage: 5V DC ± 10%
  Operating Current: 175mA (typical)
  Depth of Field Angle: 30° V × 48° H
  Field of View: 48° (H) × 30° (V)
  Material: ABS + PC
  Sealing Grade: IP54
  Drop Resistance: 1.5m
  Standard Cable: 1.8m Straight Cable
  Color Options: Black / White

Decoding Capability:

1D Barcodes:
EAN13, EAN8, UPC-A, UPC-E0/E1, Code 128, Code 39, Code 93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Codabar, MSI, RSS

2D Barcodes:
QR Code, Data Matrix (DM), PDF417
Supports mobile phone screen code reading

Package Information:

Product Size: —
Box Size: 175 × 130 × 115 mm
Outer Carton Size: 535 × 355 × 485 mm
Product Weight: ~300g (device only)
Gross Weight: ~450g (with accessories)

Package Includes:

• 1 × Barcode Scanner

• 1 × USB Cable (1.8m)

• 1 × User Manual
